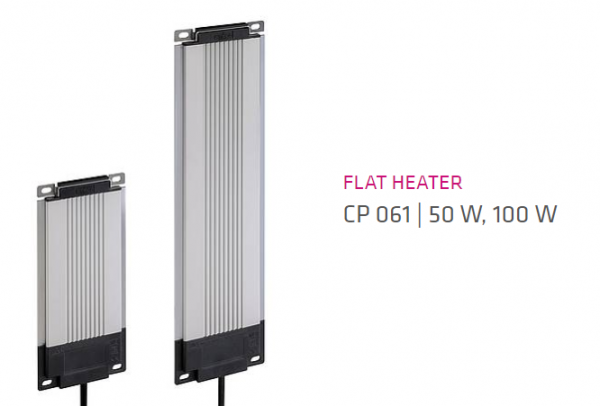

Heating element resistance heater
Temperature safety cut-out to protect against overheating, automatic reset
Heater body aluminium profile
Surface temperature max. 150 °C at +25 °C (+77 °F)
Connection silicone cable (halogen-free) 3 x 0.75 mm², length 1 m
Connection Casing plastic according to UL94 V-0, black
Mounting screw fixing (M6)
Fitting position horizontal, variable connection or
vertical, connection on bottom

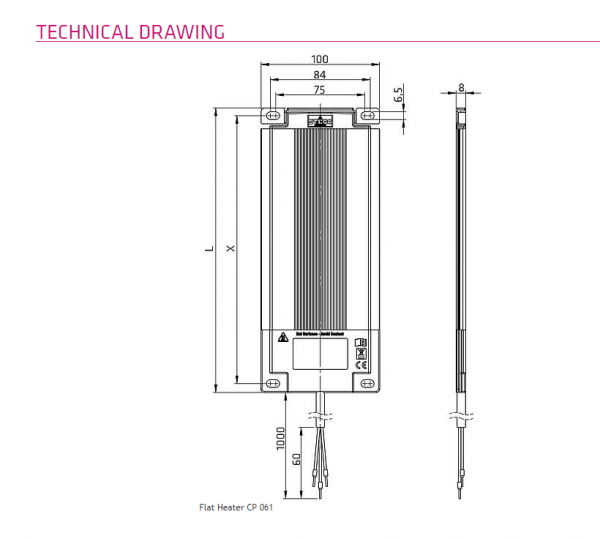

Dimensions L x 100 x 8 mm
Operating/Storage temperature -40 to +60 °C (-40 to +140 °F) / -40 to +85 °C (-40 to +185 °F)
Operating/Storage humidity max. 90% RH (non-condensing)
Protection type/Protection class IP30 / I (earthed)
Note other voltages (AC 120 V) on request

06100.0-00:  AC 230 V, 50/60 Hz 50 W 239 mm(L) 225 mm(hole spacing) 0.4 kg VDE,EAC
06101.0-00:  AC 230 V, 50/60 Hz 100 W 414 mm(L) 400 mm(hole spacing)0.7 kg VDE,EAC
